- Wide Testing Range & Very Accurate – The IRT803 provides voltage testing at 50V, 100V, 250V, 500V, 1000V with a range of 0.01MΩ-2GΩ. The IRT803 provides highly accurate readings with an accuracy of ±1.5-3% 5 digits when measuring between 0.01MΩ-500MΩ.
- High Safety Rating – The IRT803 is CATIV rated up to 600V, and CATII up to 1000V to guarantee you are well protected on the jobsite.
- Great Design – Easy to read LCD Display with backlight and a work light to illuminate dark environments. The unit also includes a protective rubber boot to provide a rugged long lasting design. The rubber boot also includes test lead holders for compact storage. Auto power off to save battery.
- Efficient Features – Save time with automatic calculation of polarization index (PI) and dielectric absorption ratio (DAR). Versatile reading options including, Hold, Zero, Lock, and Compare.

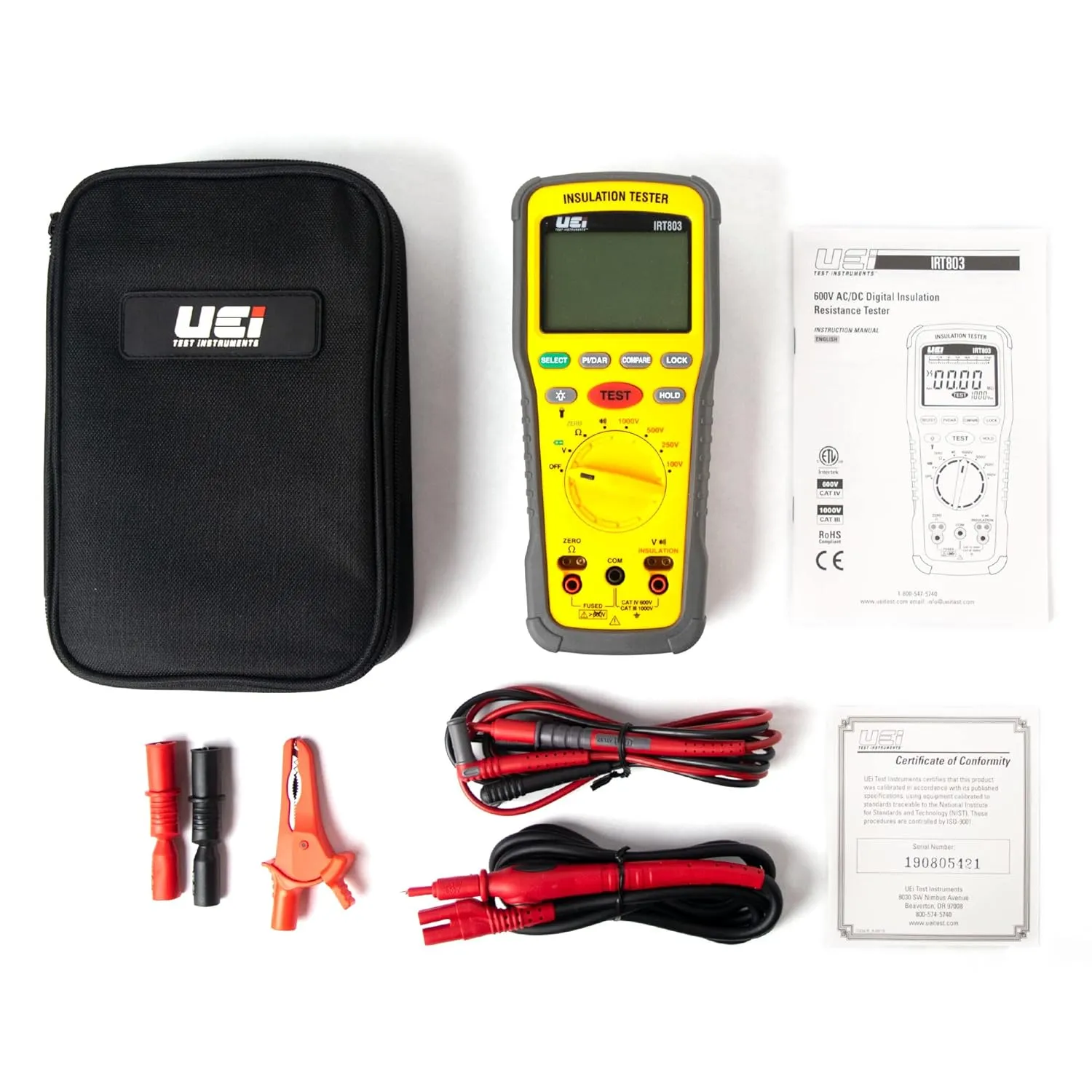

- Complete Kit – The IRT803 comes with everything you need. The insulation test kit includes Silicone test leads with alligator clips, insulation test probe with alligator clips, a soft carrying case, and 4 AA batteries.

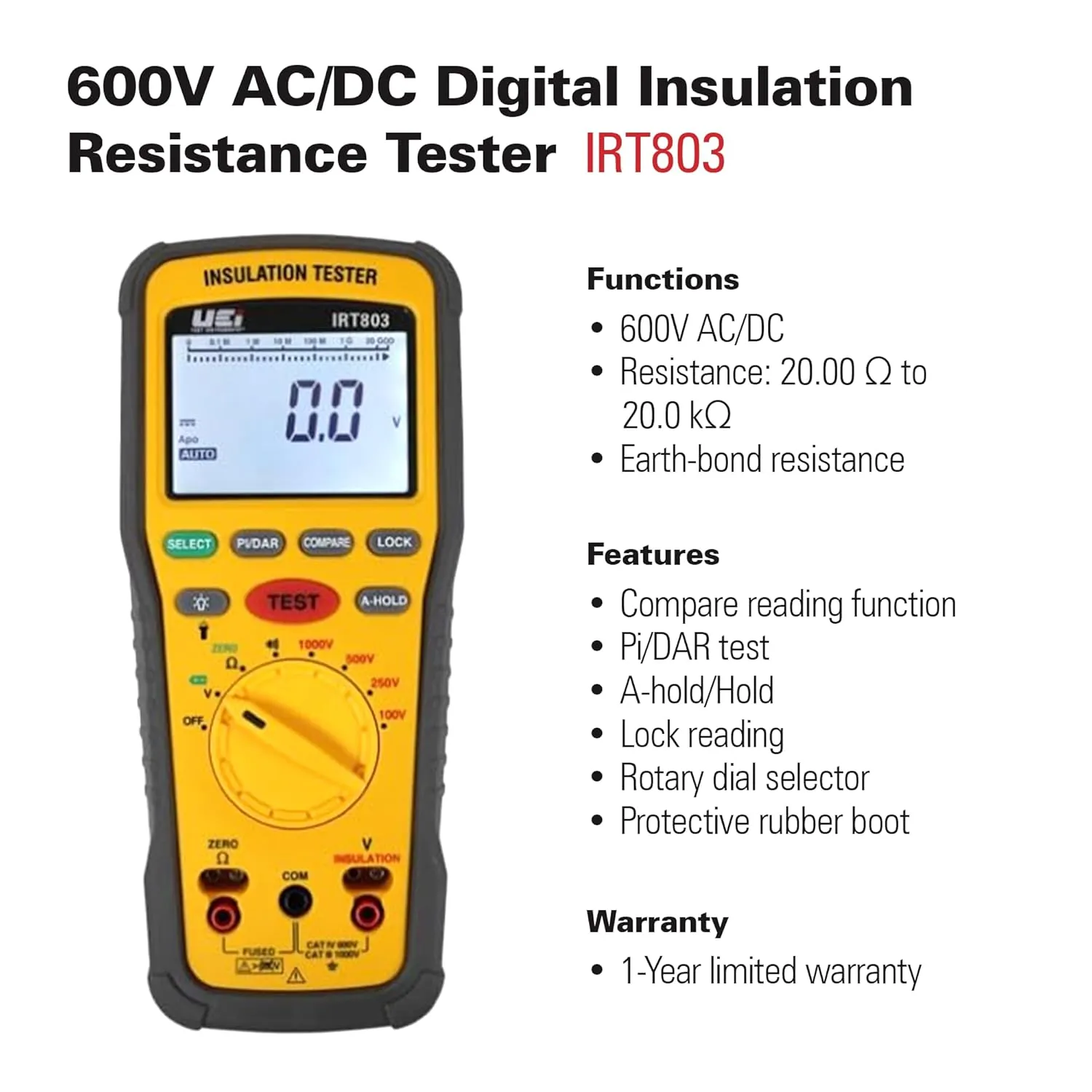

The IRT803 Digital insulation resistance tester has a 1000V AC/DC measurement capability and auto ranging. It features a backlit display that shows test function and measured value and a DMM rotary style selector. It also features lock, compare and Pi/DAR. With ranges of resistance of 20.00 ohms to 20.0o mohms and continuity, it gives the user valued options and real value. And is backed by a 1-year limited warranty.
- Product Dimensions : 1 x 1 x 1 inches; 1 Pounds
- Date First Available : July 6, 2019
- Manufacturer : UEI TEST INSTRUMENTS
- Country of Origin : Korea, Republic of
